10-in-1 Trim Router Jig – Circle Cutting, Edge Guide, Mortise, Router Table & More, Fits Compact/Palm Routers

Product Introduction

You already own a trim router. It's compact, capable, and probably one of the most-used tools on your bench. But every time you need to cut a circle, follow a straight edge, route a groove, or flush-trim a piece, you're reaching for another jig, another guide, another workaround. 🛠️

This 10-in-1 router jig changes that. It gives your existing trim router a larger, more stable base and ten different ways to work — circle cutting, edge guiding, rail-guided routing, grooves, dados, rabbets, mortises, flush trimming, bushing setups, and even router table conversion. 🔄 One jig. More control. Fewer setups. Turn your compact router into a more versatile woodworking setup.

Product Features

🎯 10 functions. One jig. Far fewer separate fixtures.

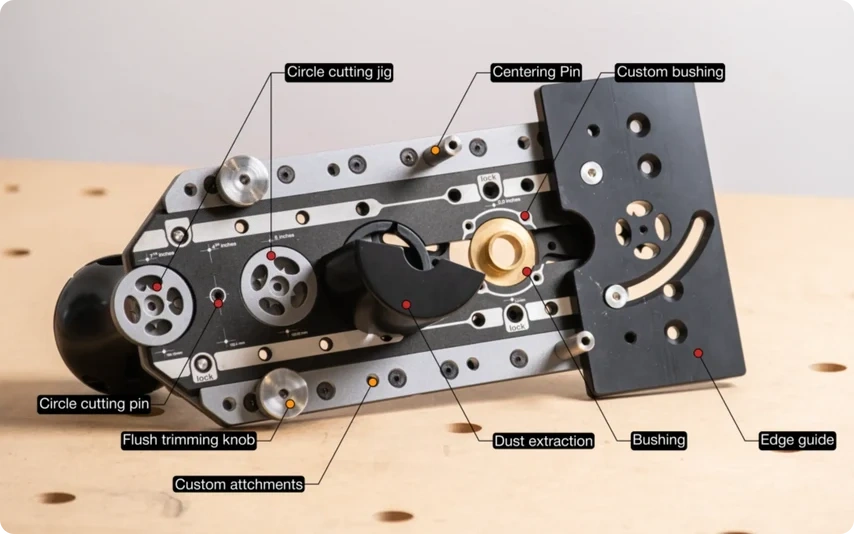

Circle cutting from 1" to 15" (2.5 cm to 76 cm). Edge guide for perfect 90-degree dados and tenons. Rail guide adapter for straight lines. Grooves, rabbets, and dados with a built-in ruler marker. Mortise alignment for repeatable center cuts. Flush trimming with a 10mm clearance surface. Bushing support for standard guide bushings. Dust extraction port for a cleaner workspace. Router table conversion. And M6/M4 threads on the bottom for custom attachments — so you can adapt it to your own setups.

🛡️ More stability. More control. Fewer mistakes.

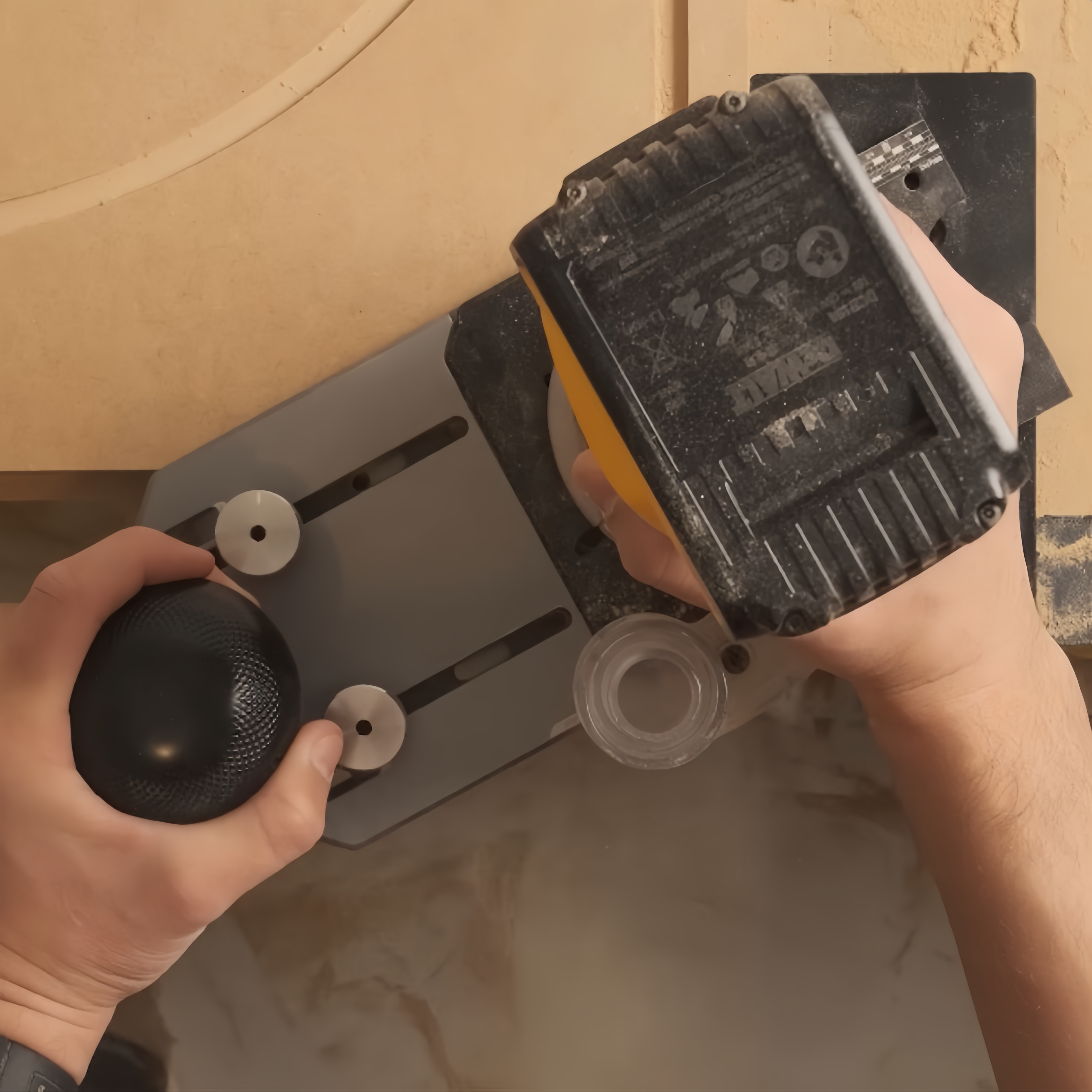

Freehand routing with a compact router can feel twitchy — especially when you're working across the middle of a board instead of along an edge. This jig gives you a larger reference surface and a sliding plate system that keeps the router where you put it. No shaking. No wandering. Just controlled, repeatable passes. The precision-engraved ruler means you're setting distances by measurement, not by eye. 📏

🔩 Built for real workshop use — not a 3D-printed stopgap.
Made from 6082 aluminum with polycarbonate attachments and 304 stainless steel hardware. Rust-resistant. Wear-resistant. Designed to live on your bench, not in a drawer. The laser-etched labeling stays legible after years of use. This isn't a homemade jig you rebuild every time you need it. It's a permanent upgrade to your routing setup. 💪

Product Specifications

Product Name: 10-in-1 Trim Router Jig
Circle Cutting Range: 1" to 15" (2.5 cm to 76 cm)
Materials: 6082 Aluminum, polycarbonate, ABS, POM, 304 stainless steel
Ruler: Precision-engraved
Threads: M6 and M4 on bottom plate for custom attachments
Dimensions: 254 × 127 × 10 mm
Weight: 3.2 kg (package)
Compatibility: Trim / compact / palm routers (not for full-size routers)
Included Accessories: Edge guide, rail guide, circle cutting setup, dust extraction attachment, bushing support
Functions: Circle cutting, edge guide, rail guide, grooves/dados/rabbets, mortises, flush trimming, bushing support, dust extraction, router table conversion, custom attachment

Package Contents

Package Contents

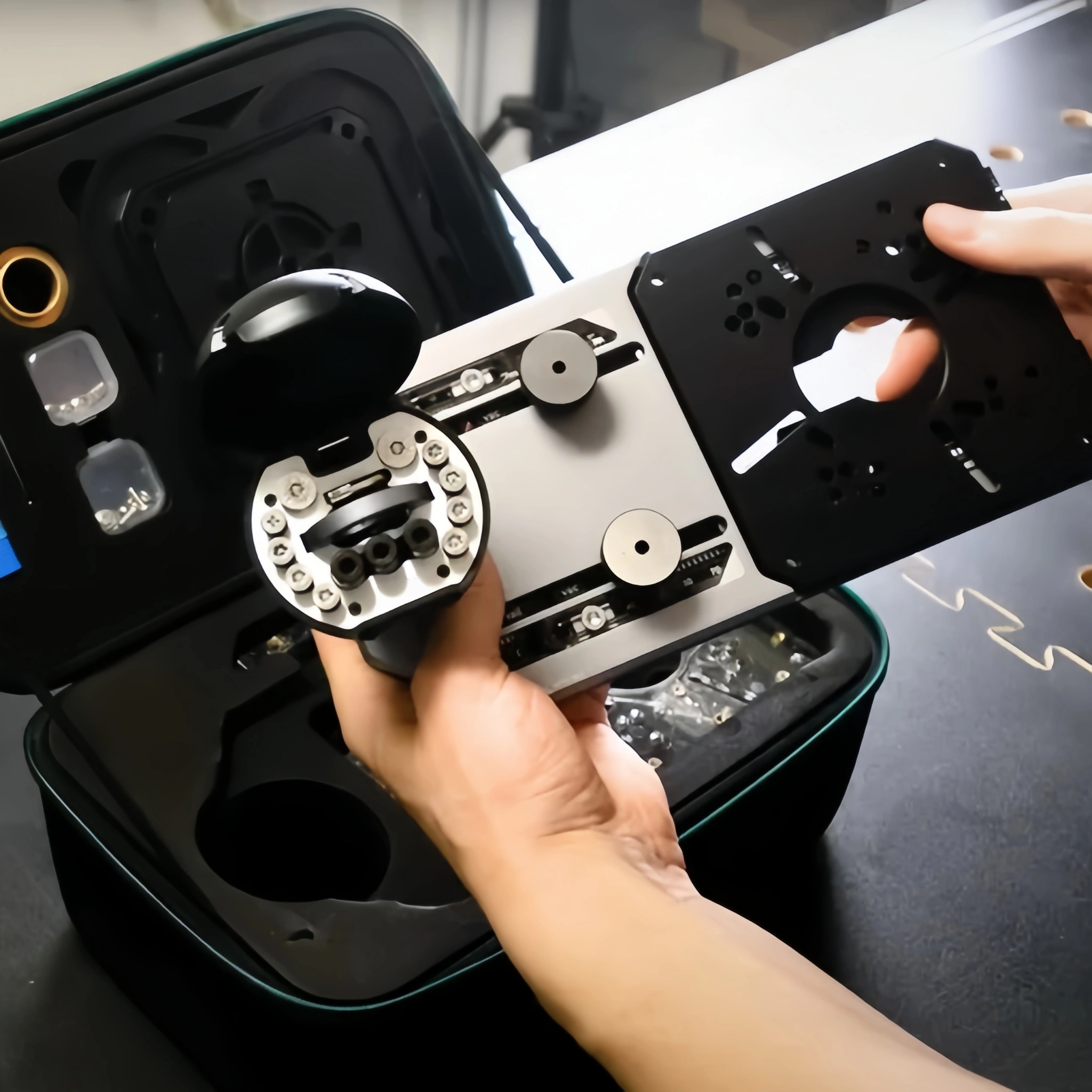

1 × 10-in-1 router jig (includes all accessories)
1 × Storage case
1 × User manual

What's Not Included
Trim router, router bits, guide bushings, vacuum hose

✨ Your router already has the power. Give it a better way to work.

One jig. Ten ways to work. Less setup, more control, and a workshop that finally works the way you do.
